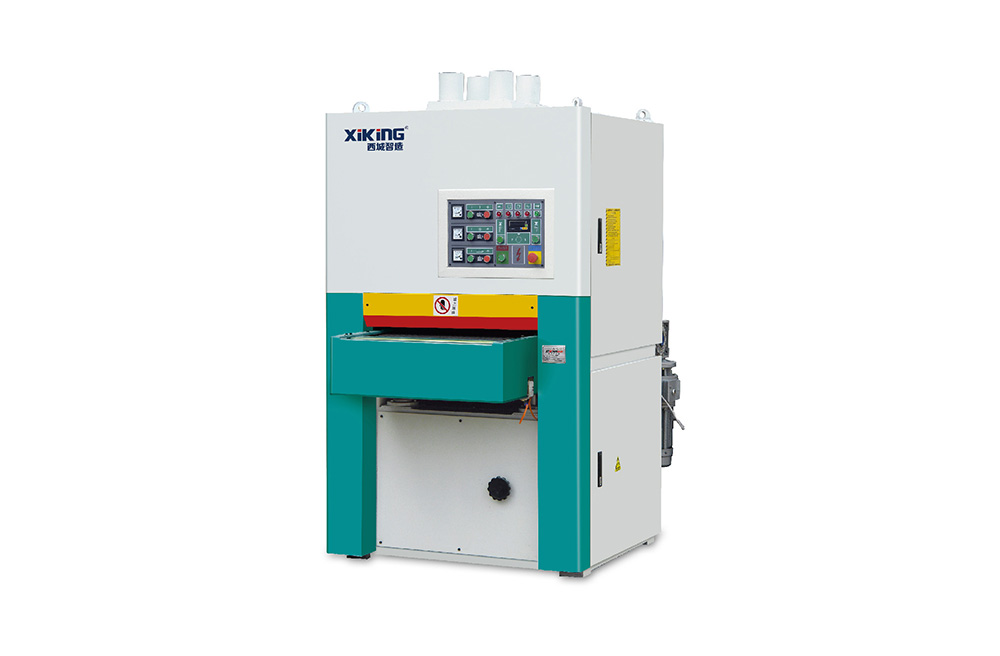

產品中心BSG2206雙砂架寬帶砂光機
功能特性
本機床可對刨花板、中密纖維板、細木工拼板、竹地板、家具膠合板的 各種芯板、底板進行定厚強力砂光。
參數配置
|
型號 |
Name |
630mm(SR) |
630mm(R-RP) |
630mm(R-R-R) |
|
砂光板材厚度 |
Thickness of sanded panel |
2.5-80mm |
2.5-80mm |
2.5-80mm |
|
砂帶尺寸 |
Dimensions of abrasive belt |
650x1950mm |
650x1950mm |
650x1950mm |
|
工作氣壓 |
Working air pressure |
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
|
電機總功率 |
Total motor power |
12.87kw |
20.25kw |
31.37kw |
|
外型尺寸 |
Overall dimensions(LxWxH) |
1300x1200x1950mm |
1500x1200x1950mm |
1700x1200x1950mm |
|
第一、二砂帶線速度 |
1st2ed sanding belt speed |
18m/s |
18m/s |
18m/s 18m/s |
|
第三砂帶線速度 |
3th sanding belt speed |
/ |
12m/s |
18m/s |
|
輸送帶速度 |
Feed belt speed |
5-20m/min |
6-30m/min |
5-20m/min |
|
重量 |
Net weight |
1200kg |
1500kg |
2100kg |
