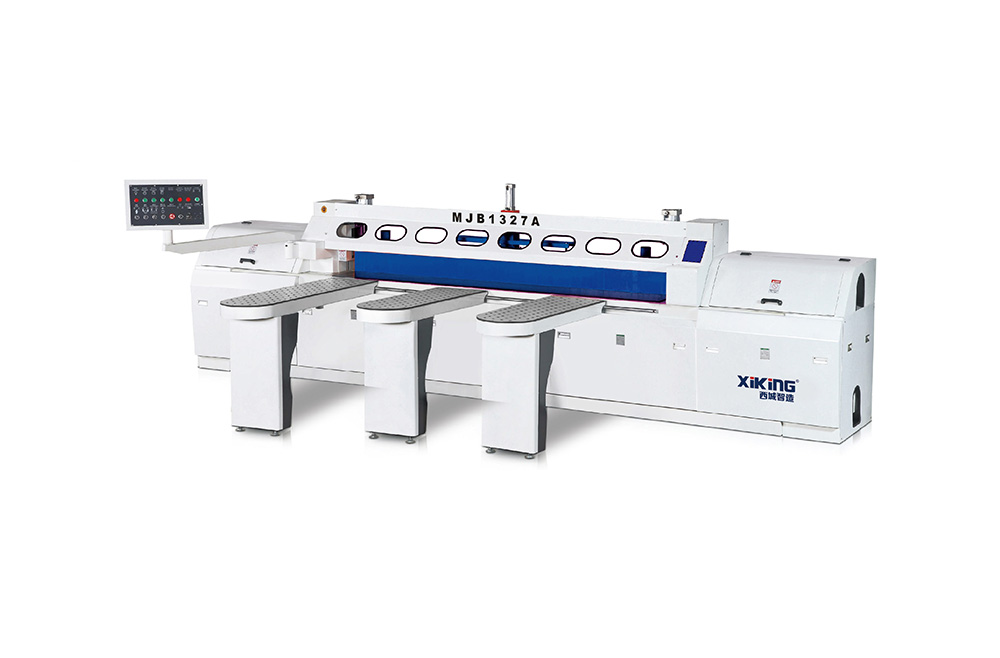

產品中心MJB1327A往復式裁板鋸
參數配置
|
型號 |
Model |
MJB1327A/MJB1327B |
MJB1333A/MJB1333B |
|
鋸切長度 |
Max.working length |
2680mm |
3280mm |
|
鋸切厚度 |
Max.working thickness |
76mm |
76mm |
|
主鋸片直徑 |
Diameter of main saw blade |
φ350mm |
φ350mm |
|
主鋸軸直徑 |
Diameter of main saw blade |
φ30mm |
φ30mm |
|
轉速 |
Rotation speed of saw spindle |
4800rpm |
4800rpm |
|
槽鋸片直徑 |
Diameter of scoring saw blade |
φ180mm |
φ180mm |
|
槽鋸軸直徑 |
Diameter of scoring saw blade |
φ30mm |
φ30mm |
|
轉速 |
Rotation speed of saw spindle |
6500rpm |
6500rpm |
|
前進速度 |
Forward speed of saw carriage |
0~37m/min |
0~37m/min |
|
后退速度 |
Backward speed saw carriage |
67m/min |
67m/min |
|
主鋸電機 |
Drive motor of saw blade(option 11kw) |
11kw |
11kw |
|
鋸座驅動電機 |
Drive motor of saw carriage |
1.5kw |
1.5kw |
|
總功率 |
Total power consumption(option 12.5kw) |
12.5kw(MJB1327B為14.7kw) |
12.5kw(MJB1333B為14.7kw) |
|
使用氣壓 |
Pnenmatic pressure |
5-7kg/c㎡ |
5-7kg/c㎡ |
|
工作臺離地高度 |
table height from floor |
900mm |
900mm |
|
凈重 |
Net weight |
2760kg |
3200kg |
|
機器尺寸（長x寬x高） |
Overall dimensions（LxWxH） |
5230x3950x1700mm |
5830x3950x1700mm |
